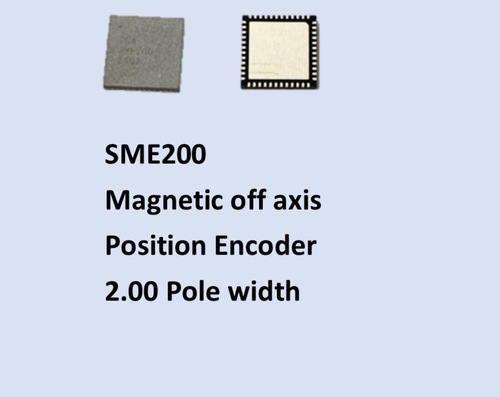

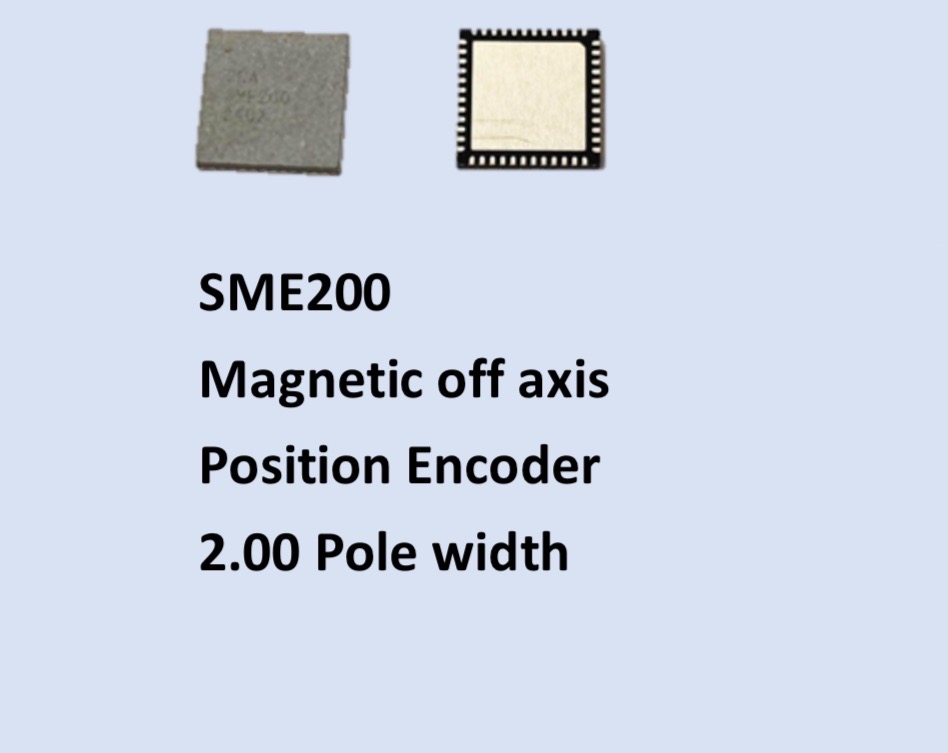

SME200 Magnetic OFF AXIS position Encoder(Pole width 2.00mm)
1.Features
• Integrated Hall sensors for two-track scanning
• Signal conditioning for offset, amplitude, and phase
• Sine/digital real-time conversion with 12-bit resolution
• 2-track Nonius absolute value calculation up to 18 bits
• 16, 32, or 64 pole pairs per measurement distance
• Enlargement of measurement distance with second SME200 (3-track Nonius)
• Synchronization of external multi-turn systems
• Configuration from an external EEPROM
using a multi-master I2C interface
• Microcontroller-compatible serial interface (SPI, SSI)
• Incremental quadrature signals with an index (ABZ)
• SME200 : Hall sensors optimized for 2.00mm pole width
-Package : QFN 48L (7.0*7.0*0.75mm)
• Signal conditioning for offset, amplitude, and phase
• Sine/digital real-time conversion with 12-bit resolution
• 2-track Nonius absolute value calculation up to 18 bits
• 16, 32, or 64 pole pairs per measurement distance
• Enlargement of measurement distance with second SME200 (3-track Nonius)
• Synchronization of external multi-turn systems
• Configuration from an external EEPROM
using a multi-master I2C interface
• Microcontroller-compatible serial interface (SPI, SSI)
• Incremental quadrature signals with an index (ABZ)
• SME200 : Hall sensors optimized for 2.00mm pole width
-Package : QFN 48L (7.0*7.0*0.75mm)
2.Applications
• Rotative / Linear absolute encoders
• Single-turn and Multi-turn encoder
• Motor feedback encoder
• Hollow shaft encoder
• Multi-axis measurement system
3.Description
• SME200 is used for magnetic off-axis position definition with integrated Hall sensors. By scanning two separate channels the device can log an absolute position. The chip conditions the sensor signals and compensates for typical signal errors.
• The internal 12-bit sine/digital converters generate two position words that supply high-precision position data within one sine-period.
• The integrated Nonius calculation engine calculates the absolute position within one mechanical revolution and synchronizes this with the master track position word. Position data can be transmitted serially, incrementally, or analog through two ports in various modes of operation.
• The internal 12-bit sine/digital converters generate two position words that supply high-precision position data within one sine-period.
• The integrated Nonius calculation engine calculates the absolute position within one mechanical revolution and synchronizes this with the master track position word. Position data can be transmitted serially, incrementally, or analog through two ports in various modes of operation.
4.Maximum Ratings & Operating conditions
• Operating temperature : -40℃ ~ 115℃
• Supply Voltage Range : 4.5~5.5 V
Permissible power dissipation : 400mW
• Supply Voltage Range : 4.5~5.5 V
Permissible power dissipation : 400mW
